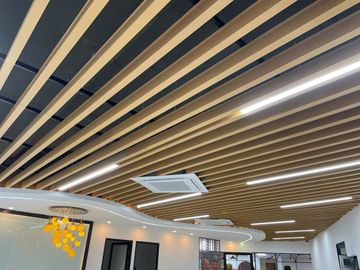

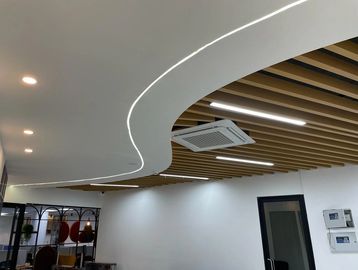

A CEILINGKART PRODUCTS

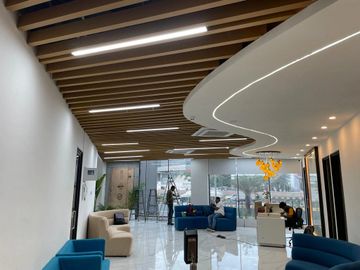

Aluminum Extruded Baffle Ceiling
25 x 100 mm wood finish - 100 mm C/C spacing
.jpeg/:/cr=t:0%25,l:5.68%25,w:88.63%25,h:100%25/rs=w:360,h:270.6766917293233,cg:true)
Aluminum Extruded Baffle Ceiling
25 x 100 mm wood finish - 200 mm C/C spacing
Aluminum Extruded Baffle Ceiling
25 x 100 mm wood finish - 150 mm C/C spacing

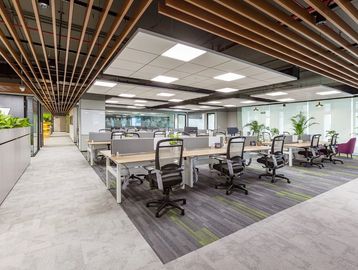

Aluminum Extruded Baffle Ceiling
50 x 100 mm wood finish - 150 mm C/C spacing
Aluminum Extruded Baffle Ceiling
50 x 100 mm wood finish - 100 mm C/C spacing
Aluminum Extruded Baffle Ceiling
50 x 100 mm wood finish - 200 mm C/C spacing
.jpeg/:/cr=t:0%25,l:0.12%25,w:99.75%25,h:100%25/rs=w:360,h:270.6766917293233,cg:true)
Aluminum Extruded Baffle Ceiling
50 x 100 mm wood finish - 150 mm C/C spacing
.jpeg/:/cr=t:0%25,l:0.12%25,w:99.75%25,h:100%25/rs=w:360,h:270.6766917293233,cg:true)
Aluminum Extruded Baffle Ceiling
50 x 100 mm wood finish - 150 mm C/C spacing
Aluminum Extruded Baffle Ceiling
50 x 100 mm wood finish - 150 mm C/C spacing

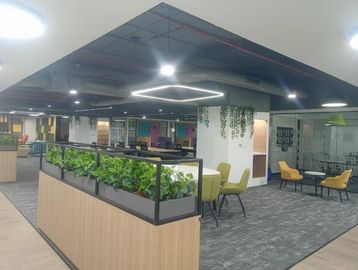

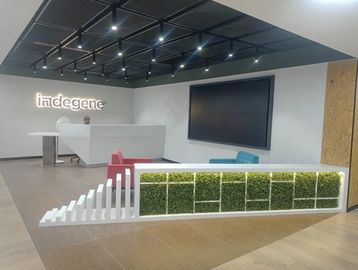

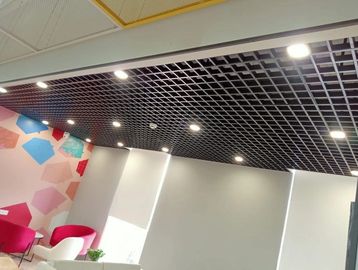

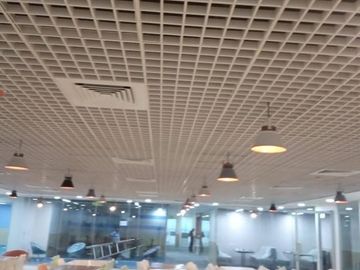

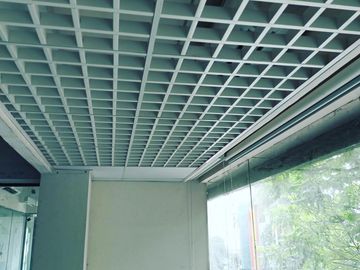

A-Square Open Cell Ceiling:
A-Square GI Open Cell Ceiling Tiles of Size 595mm X 595mm X 0.5mm ( Opening 100mm C/C
.jpeg/:/cr=t:0%25,l:0.12%25,w:99.75%25,h:100%25/rs=w:360,h:270.6766917293233,cg:true)
A-Square Open Cell Ceiling:
A-Square GI Open Cell Ceiling Tiles of Size 595mm X 595mm X 0.5mm ( Opening 100mm C/C
A-Square Open Cell Ceiling:
A-Square GI Open Cell Ceiling Tiles of Size 595mm X 595mm X 0.5mm ( Opening 100mm C/C

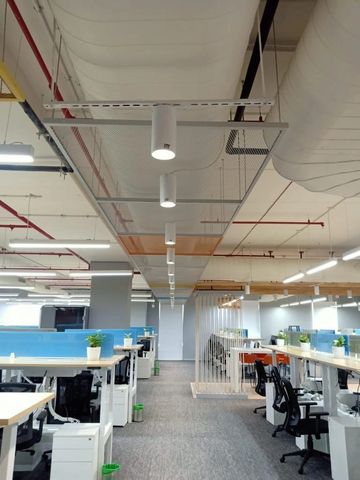

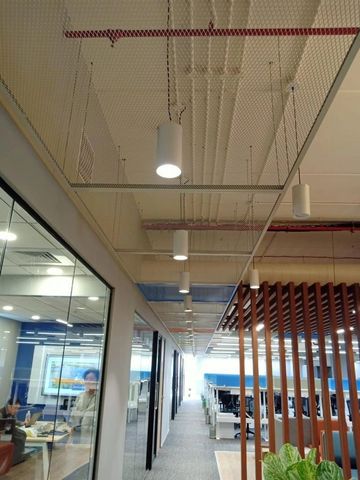

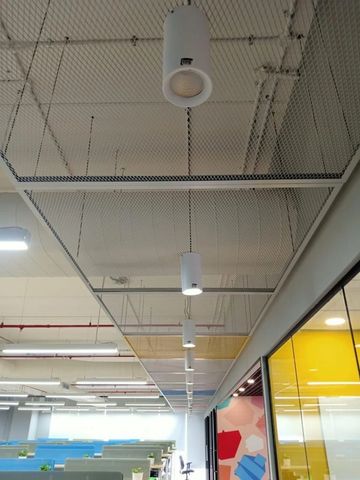

A-Square GI Metal Mesh Lay-in Ceiling:
A - Square GI metal mesh Lay In Tiles of Size 595mm X 595mm
A-Square GI Metal Mesh Lay-in Ceiling:
A - Square GI metal mesh Lay In Tiles of Size 595mm X 595mm
.jpeg/:/cr=t:0%25,l:0.25%25,w:99.75%25,h:100%25/rs=w:360,h:270.6766917293233,cg:true)
A-Square GI Metal Mesh Lay-in Ceiling:
A - Square GI metal mesh Lay In Tiles of Size 595mm X 595mm
.jpeg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:360,h:480,cg:true)
A-Square GI Metal Mesh Lay-in Ceiling:
A - Square GI metal mesh Lay In Tiles of Size 595mm X 595mm
A-Square GI Metal Mesh Lay-in Ceiling:
A - Square GI metal mesh Lay In Tiles of Size 595mm X 595mm

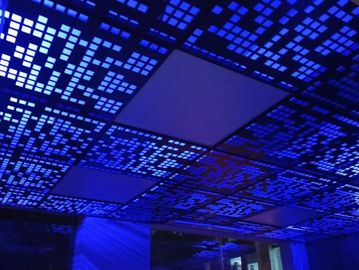

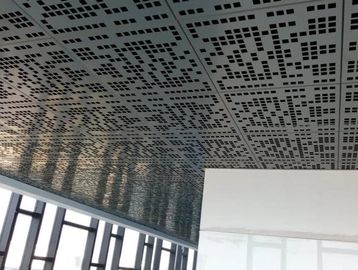

A-Square GI Random Perforated Ceiling Lay-in Ceiling :
A-Square GI Random Perforated Ceiling Lay-in Ceiling Tiles of Size 595mm X 595mm
A-Square GI Random Perforated Ceiling Lay-in Ceiling :
A-Square GI Random Perforated Ceiling Lay-in Ceiling Tiles of Size 595mm X 595mm
A-Square GI Random Perforated Ceiling Lay-in Ceiling :
A-Square GI Random Perforated Ceiling Lay-in Ceiling Tiles of Size 595mm X 595mm
.jpeg/:/cr=t:0%25,l:12.5%25,w:75%25,h:100%25/rs=w:360,h:360,cg:true)

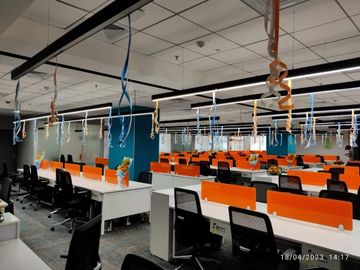

A-Square GI Plain Lay-in Ceiling:
A-Square GI plain Lay In Tiles of Size 595mm X 595mm

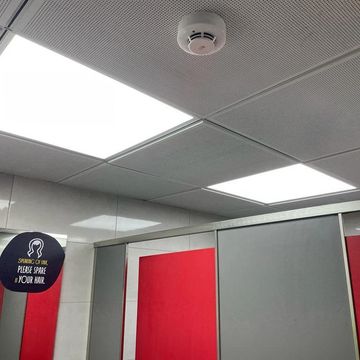

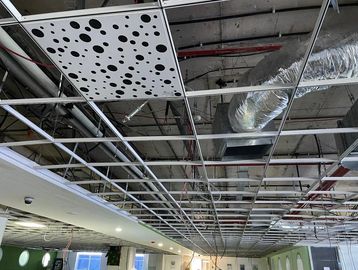

A-Square GI Perforated Lay-in Ceiling:
A-Square GI Perforated Lay In Tiles of Size 595mm X 595mm
A-Square GI Perforated Lay-in Ceiling:
A-Square GI Perforated Lay In Tiles of Size 595mm X 595mm
Pinhole(595x595x15mm

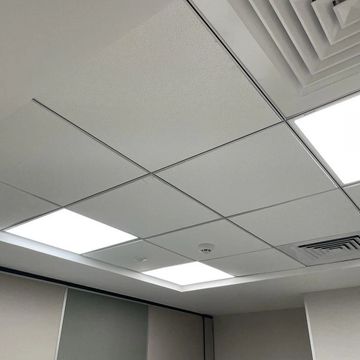

Mineral Fiber Lay-in Ceiling
.jpeg/:/cr=t:0%25,l:0.12%25,w:99.75%25,h:100%25/rs=w:360,h:270.6766917293233,cg:true)
Sand 595x595x15mm
Mineral Fiber Lay-in Ceiling
Fine Fissured 595x595x15mm
Mineral Fiber Lay-in Ceiling
Product descriptions
Baffle Ceiling RAL Finish 25x100mm
Baffle Ceiling Wood Finish 25x100mm
Baffle Ceiling Wood Finish 25x100mm
A-Square Aluminium Baffle Ceiling System consists of 1.2 mm thick Baffle Panel of Extruded profile of size 25 (w) x 100 (h) Spacing as per design. These Baffle panels are powder coated in approved finish (as per Architect approval). The Baffle panels are fixed on to the "C" type GI Carrier in Black color which has slots of definite spacings as per the design requirement. This way the Baffle panels are fixed at definitespacings as per design using Bolt and Nut. The C Carrier is then suspended at every 1mtr with 6mm threaded rod, where one end is connected to the carrier and the other end with anchor fastner fixed on true ceiling. The panel ends are then closed with end caps which are also with same color matching the panels.. Finish: RAL finish
Baffle Ceiling Wood Finish 25x100mm
Baffle Ceiling Wood Finish 25x100mm
Baffle Ceiling Wood Finish 25x100mm
A-Square Aluminium Baffle Ceiling System consists of 1.2 mm thick Baffle Panel of Extruded profile of size 25 (w) x 100 (h) Spacing as per design. These Baffle panels are powder coated in approved finish (as per Architect approval). The Baffle panels are fixed on to the "C" type GI Carrier in Black color which has slots of definite spacings as per the design requirement. This way the Baffle panels are fixed at definitespacings as per design using Bolt and Nut. The C Carrier is then suspended at every 1mtr with 6mm threaded rod, where one end is connected to the carrier and the other end with anchor fastner fixed on true ceiling. The panel ends are then closed with end caps which are also with same color matching the panels.. Finish: Wood finish
Baffle Ceiling RAL Finish 50x100mm
Baffle Ceiling Wood Finish 50x100mm
Baffle Ceiling Wood Finish 50x100mm
A-Square Aluminium Baffle Ceiling System consists of 1.5mm thick Baffle Panel of Extruded profile of size 50 (w) x 100 (h) Spacing 150 mm C/C These Baffle panels are powder coated in approved finish (as per Architect approval). The Baffle panels are fixed on to the "C" type GI Carrier in Black color which has slots of definite spacings as per the design requirement. This way the Baffle panels are fixed at definitespacings as per design using Bolt and Nut. The C Carrier is then suspended at every 1mtr with 6mm threaded rod, where one end is connected to the carrier and the other end with anchor fastner fixed on true ceiling. The panel ends are then closed with end caps which are also with same color matching the panels.. Finish: RAL
Baffle Ceiling Wood Finish 50x100mm
Baffle Ceiling Wood Finish 50x100mm
Baffle Ceiling Wood Finish 50x100mm
A-Square Aluminium Baffle Ceiling System consists of 1.5mm thick Baffle Panel of Extruded profile of size 50 (w) x 100 (h) Spacing as per design. These Baffle panels are powder coated in approved finish (as per Architect approval). The Baffle panels are fixed on to the "C" type GI Carrier in Black color which has slots of definite spacings as per the design requirement. This way the Baffle panels are fixed at definitespacings as per design using Bolt and Nut. The C Carrier is then suspended at every 1mtr with 6mm threaded rod, where one end is connected to the carrier and the other end with anchor fastner fixed on true ceiling. The panel ends are then closed with end caps which are also with same color matching the panels.. Finish: Wood finish
